DWB-500
Reciprocating Pillow-Type Packaging Machine
Application

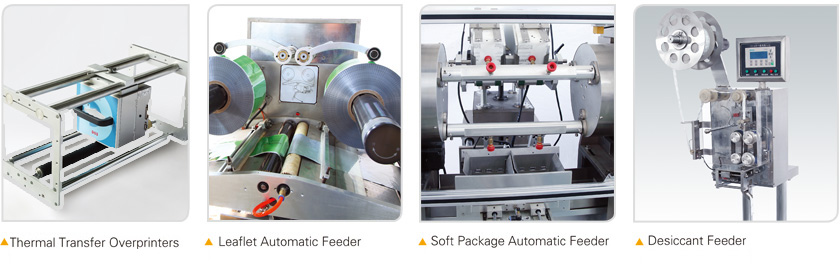

Pillow-Type Packing Machine Optional Feeder


Features
  • 1.
    Easy Operation by touch screen.
  • 2.
    AC Drive Motor with frequency inverter for stepless control.
  • 3.
    Motorized cut off length set up quick and fine adjustment.
  • 4.
    PID control for heater temperature with auto-tuning function.
  • 5.
    Digital display for cut off length speed and pack counter.
  • 6.
    Built-in LEDs for visual error check.
  • 7.
    Precise automatic print registration set up and operation with eye-mark monitoring.
  • 8.
    Easy maintenance design for drive components.
  • 9.
    For easy operation, symmetrical type available.
Main Technical Parameters

Production Capacity

30-120 Bags/min(Vary with different specifications)

Film Width

(Max) 450mm

Cut Off Length

75-400mm

Product Size

(Max width)200mm,(Max height)60mm

Weight

(about)1000kg

Rated Voltage

AC220V/50Hz

Total Power

3.5kw

Overall Dimension

(L×W×H) 3750×1200×1650mm


Note: The products of our company may always be updated, and are subject to change without notice (the real products shall prevail).
